260 Meters Depth Agricultural Irrigation Pneumatic Borewell Machine

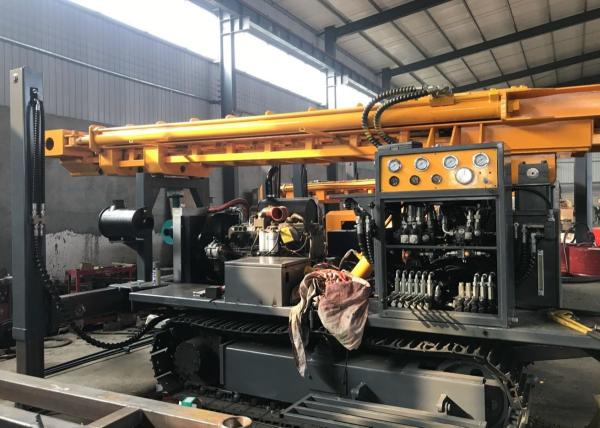

ST 260 Pneumatic Borewell Machine Introduction
The ST260 is mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, .It is widely used in drilling wells, inspection wells, precipitation wells, rescue wells, Ground source air conditioning holes, CBM, natural gas, oil extraction and other projects. this machine can drill holes with air compresse in all formations , the drilling speed is very fast when drill the hard rock , which hardness is f=4-20.
ST 260 Pneumatic Borewell Machine Tech Details
| Drilling Depth | 260m |
| Hole Diameter | 140-260mm |
| Advance Length once | 63m |
| Working pressure | 1.7-3.0MPa |
| Air consumption | 17-35m³/min |
| Length of rod | 1.5m,2m,3m,6m |
| Dia. Of rod | φ76, φ89,φ102,φ114 |
| Lifting power | 24T |
| Rotation torque | 8500-11000N.m |
| Rotation Speed | 40-70r/min |
| Diesel Engine | Yuchai |
| Engine Power | 85Kw/2200rpm |
| Travelling speed | 0-2.5 Km/h |
| Climb capacity | 30° |
| Weight | 6000kgs |
| Dimension | 4m×1.7m×2.2m |
| Application | Complicated geological conditions:Rock,Mud,Sand etc. |
| Drilling Way | Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling |
| Dth Hammer | 4",5",6",8" Drill hammer or CIR110, 130, 150,170 |
ST 260 Pneumatic Borewell Machine Advantages
1, It is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.
2, This machine can drill in different stratum, The maximum bore diameter can be 450mm.
3, This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.
4,Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
5,This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.
6, Two gears rotation and feeding speed makes it work in soil and rock layers.
ST 260 Pneumatic Borewell Machine FAQ
Q 1: What kind of drilling rig do you have?
A: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement .
Q 2: Where is the address of your company?
A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China
Q 3: Are you a manufacturer or a trading company?
A:We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China
Q 4: How long is your delivery time?
A: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance.
Q 5: How long is the warranty of your well drilling rig?
A: Except for consumable spare parts, the whole machine shall be one year.
Q6: How long can your air compressor be used?
A: Normally more than 10 years.
Q 7: What are the terms of payment?
A: TT, Western Union transfer.
Courtyard Drilling Attentions
1. Consider whether the well depth is reasonable
We should first investigate whether there are cables, sewers and other facilities under the ground, and avoid unnecessary damage.
2. Convenience, health and other issues should be considered.
After drilling the well, find some charcoal and throw it into the well with a bag and press it at the bottom of the well to absorb foreign toxins. After having water, you can put a few small fish down, which is a good way to test the safety of water quality.
3. The well should not be too deep. It should be above the ground and should be blocked with bricks and stones. It is better to have a cover, so as to prevent dirt from falling in, make people feel safer and avoid unnecessary dangers.
Four aspects of rural water wells
1, Select appropriate well type
The well types of water source wells are divided into deep wells, large wells, counterpart pumping wells, foreign wells, and small-diameter tube wells. In areas with abundant deep groundwater, it is appropriate to drill deep wells. In areas with abundant shallow groundwater, it is appropriate to drill large wells, counterpart pumping or small-diameter tube wells.
2, Reasonable well layout
The location and layout of wells shall be reasonably arranged according to the local actual hydro geological conditions. If there is no hydro geological data, refer to the existing water source wells around as the basis for the layout of wells. In areas where shallow groundwater is not abundant, shallow wells should not be drilled blindly; In areas with abundant shallow groundwater, it is suitable for farmers to build their own shallow wells, but the well hole layout should not be too dense to avoid the interaction between adjacent water source wells.
3, Configure appropriate water pump
After the well is completed, measure the water level of the water outlet well and the corresponding water output according to the drainage condition of the drilling machine, and then determine the total head of the water pump according to the height difference from the ground to the dynamic water level and the irrigation method you adopt, and the required working head of the water pump. The flow of the water pump shall not exceed the water flow through the well. The corresponding water pump shall be purchased on the premise of the above two items.
