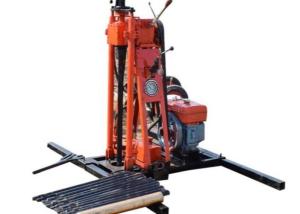

Vertical Lightweight Less Depth SPT Sampling Geological Drilling Rig Machine
ST 50 Geological Drilling Rig Information:
Drilling and coring equipment for geological drilling of vertical 50 diesel hydraulic drill such as rotary and cylinder pressure with hydraulic pack, which is quite reliable for operation.Its depth is 50 meters and optional hole diameter according to the exact earth conditions.
ST 50 Geological Drilling RigTech Details:
| Max. drilling depth | 50m |
| Max .opening diameter | φ75-φ108mm |
| End hole diameter | 56-75mm |
| Active drill pipe | 50/1000mm |
| Drill pipe diameter | Φ42mm |
| Drill pipe length | 1000mm |
| Power (diesel engine) | 5.8kw(8P)/2200r/min |
| Size | 1400*600*1600mm |
| Weight | 240kg |
| Spindle |
| Speed | 285-570r/min |
| Torque | 600 N*m |
| Stroke | 1000mm |
| Lifting force | 300KG |
| Pressure | 200KG |
| Drilling Tower (optional) |
| Rated load | 1t |
| Height | 4m |
| Tower leg specifications | 60mm |
| Mud Pump |
| Model | BW-50 |
| Flow | 50L/min |
| Max.pressure | 1.2Mpa |
| Times | 63/min |
| Inlet hose diameter | φ55mm*2.5m |
| Outlet hose diameter | Φ20mm*10m |
ST 50 Geological Drilling Rig Main Features:
1. Double oil cylinder hydraulic feeding system, the drilling speed is fast and the working efficiency is high.
2. A fixed clamping mechanism and an integrated main rod, which does not need a drilling tower and works conveniently.
3. 4-speed transmission system. The operator can freely adjust the forward rotation speed through three gears, and is also equipped with a slow reverse gear, which is convenient for the operator to disassemble the drill pipe and drill tool.
4. The handle is centralized, easy to operate, safe and feasible.
5.A pressure gauge at the bottom of the hole to indicate the pressure, which is convenient to master the situation in the hole.
6. Compact structure and small floor area.
What is a soil sample investigation?
Soil investigation is to carry out physical testing on-site to understand the ground conditions for geotechnical design. Site works usually consist of the Cone Penetration Test, Vane Shear Test, Standard Penetration Test, Installation of Water Standpipe, Instrumentation's, etc.
