GY 200 Exploration Engineering Hydraulic Borewell Machine Equipment
GY 200 Hydraulic Borewell Machine Introduction:
GY-200 Drilling Rig is a light multifunctional engineering project prospecting drilling rig.It was designed for geologic structure prospecting of industrial and civil constructions, such as railways, bridges and hydroelectric projects.
GY 200 Hydraulic Borewell Machine Technical Data:
| GY 200 drilling rig Parameters |
| Drilling depth | 60 225 295m |
| Drilling diameter | 300 76 46mm |
| Drill pipe diameter | 50 42mm |
| Spindle Turnable Angle | 0-360degree |
| Net weight(excluding the power machine) | 670kg |
| Dimension(length*width*height) | 1820*980*1400mm |
| Revolving Plate |
| Spindle speed | 900 475 388 205 157 68 r/min |
| Maximum torque | 2000N*m |
| Driving travel | 400mm |
| Maximum Cylinder driving force | 2,9000N |
| Maximum Cylinder lifting force | 3,9000N |
| Lifter |
| Lifting capacity | 3,0000N |
| Bobbin line speed (2 layers) | 0.27 0.64 0.83 1.58 1.64 m/s |
| Bobbin diameter | 135mm |
GY 200 Hydraulic Borewell Machine Advantage
Wide range if P.R.M and well-set gears
Great torque in low P.R.M, fit for coring drilling and piling hole works.
Mobile cylinder installed so that the drilling machine got a free travel of 300mm, ensured easy remove of drilling stem.
Easy to handle, high efficiency, oil hydraulic drive, low labour intensity.
Optimized structure, small volume, and lightweight.
GY 200 Hydraulic Borewell Machine Application
1.1.1 engineering geological survey of railway, hydropower, transportation, bridge, dam foundation and other buildings.
1.1.2 geological core drilling and physical survey.
1.1.3 drilling of small grouting holes and blasting holes.
1.1.4 small water well drilling
Product Tags:
|
|

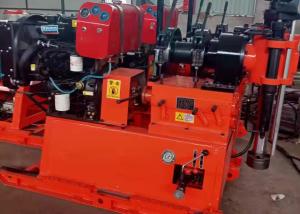

GY 200 Exploration Engineering Hydraulic Borewell Machine Customized 300 Meters Depth Images
|
