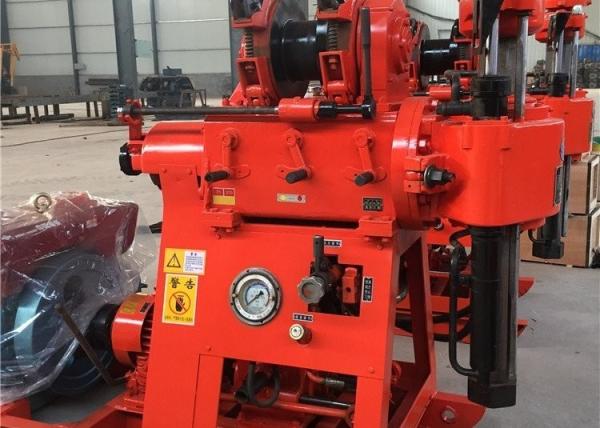

Gk 200 Portable Drilling 275mm Hydraulic Borewell Machine

Name: Gk 200 Portable Drilling 275mm Hydraulic Borewell Machine
Brand: ShiTan
Price: 1 USD

Quality Gk 200 Portable Drilling 275mm Hydraulic Borewell Machine wholesale

Brand Name : ShiTan

Model Number : GK200

Certification : ISO9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, Western Union

Delivery Time : Within 7ays

Packaging Details : Wooden box

Product Name : GK 200 Portable Hydraulic Drilling Machine Borehole Drilling Machine

Type : hydraulic drilling rig

Color : Red Yellow

Feature : High Drilling Efficiency

Usage : Water Well

Application : Soil Sampling,water well drilling

Power Type : Diesel

Drilling Depth : 200 Meters

Hole Diameter : 75-275mm

Warranty : 12 months

OEM : acceptable

Mud Pump : BW 160

Condition : New

Contact Now

GK 200 Portable Hydraulic Drilling Machine Hydraulic Borewell Machine

GK 200 Hydraulic Borewell Machine Information

Gk200 drilling rig is designed by adding mud pump based on xy-1a drilling rig according to customer feedback. It is a high-speed portable drilling rig fed by hydraulic pressure

GK 200 Hydraulic Borewell Machine Tech Data

Drilling depth	200m
Maximum opening diameter	75-300mm
Final hole diameter	75mm
Sizes	53/59*4200mm
Drill pipe diameter	50,60mm
Drilling angle	90°~75°
Auxiliary power diesel engine	15/2200kW/r/min
Structural weight/Size	1150kg/27009501770

GK 200 Hydraulic Borewell Machine Main Advantages

With the hydraulic feeding mechanism,improve the drilling efficiency,reducing the labor intensity of workers.

The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency, safe and reliable

Furnished with hole bottom pressure gauge pressure indicator,and easy to master the status inside the hole

The handle centered, convenient operation.

The drilling machine has the advantages of compact structure,small volume,light weight,convenient move,decomposition and strong,suitable for the plains or mountain areas.

Adopting large Kelly,double guide pipe. Increase the stability

GK 200 Hydraulic Borewell Machine Application

1 engineering geological survey of railway, hydropower, transportation, bridge, dam foundation and other buildings.

2 geological core drilling and physical survey.

3 drilling of small grouting holes and blasting holes.

4 drilling of small water wells.

Gk 200 Portable Drilling 275mm Hydraulic Borewell Machine
