XY-1A OEM 22kw Small Hydraulic Drilling Machine,150 Meters Soil Testing Drilling Rig
XY-1A Soil Testing Drilling Rig Product Introduction:
It is widely used in drilling family wells, drilling industry wells and drilling survey geological sampling, SPT service etc.
XY-1A Soil Testing Drilling Rig Technical Parameter:
XY-1A Drilling Rig Specification |
| | Drilling hole diameter | mm | 150 |
| Drilling depth | m | 150 |
| Drill pipe diameter | mm | 42 |
| Borehole inclination | ° | 90°～75° |
| Rig dimension(L×B×H) | mm | 1640×1030×1440 |
| Drill weight(except engine) | kg | 500 |
| | spindle speed(three block) | r/min | 142,285,570 |
| spindle travel | mm | 450 |
| max moving speed | m/min | 3 |
| vertical max feed force | KN | 15 |
| vertical max lift | KN | 25 |
| | hoisting capacity(single speed rope) | KN | 10 |
| drum speed | r/min | 55,110,220 |
| drum circumferential velocity | m/s | 0.42,0.84,1.68 |
| drum diameter | mm | 145 |
| wire rope diameter | mm | 9.3 |
| rope weight | m | 27 |
| the diameter of the brake | mm | 230 |
| brake band width | mm | 50 |
XY-1A Soil Testing Drilling Rig Product Features:
1.with oil pressure automatic feed mechanism, it can improve drilling efficiency and reduce workers' physical work.
2.replace chuck and can perform non-stop rod reversing. It is easy to operate ,safe and reliable.
3.a pressure gauge is equipped at the bottom of a hole to grasp the condition of the hole.
4.the centralized handle is easy to operate and easy to maintain.
5.drilling rig, pump and diesel engine are on the same base.
XY-1A Soil Testing Drilling Rig Our Service
Non-human factors, we will provide free spare parts and technical guidance.
We charge the cost of spare parts, but we provide technical guidance and other after-sale service for free.
Whole-hearted service for pre-sales and after-sales everyday!
Product Tags:
|
|

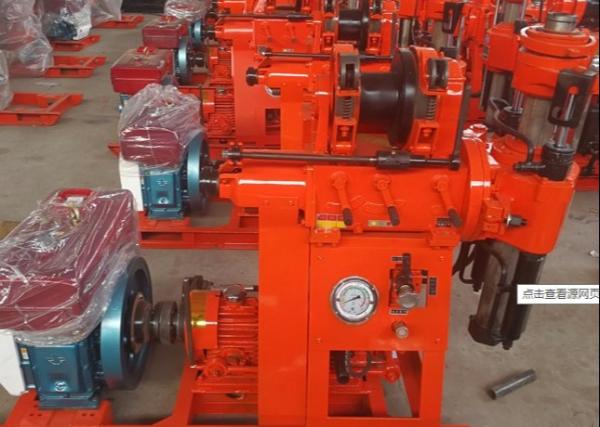

XY-1A OEM 22kw 150 Meters Soil Testing Drilling Rig Images
|
