200 Meters 1 Year Warranty Geological Drilling Rig For Soil Sample

Brand Name : ShiTan

Model Number : GK200

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 5-8 work days

Packaging Details : Plastic film and Standard Export Wooden Box

Product Name : GK 200 Meters Top Quality China Drilling Machine Geological Drilling Rig

Drilling Way : Rotary

Geological : soil, rock, hard rock,

Transport Package : in Wooden Case

Chuck : Hydraulic Chuck

Usage : Soil sample

Net weight : 600 KG

Warranty : 1 Year

Drill angle : 90°-75°

Matched power(diesel power) : 15kw/2200r/min

Active drill rod : 53/59*4200mm

Rod diameter : 50,60mm

Contact Now

GK 200 Meters Top Quality China Drilling Machine Geological Drilling Rig

GK 200 Meters Top Quality China Drilling Machine Geological Drilling Rig Introduction

Portable Water Well Drilling Rig parameters

Drilling depth 200m
Open hole diameter 75-300mm
End hole diameter 75mm
Active drill rod 53/59*4200mm
Rod diameter 50,60mm
Drill angle 90°-75°
Matched power(diesel power) 15kw/2200r/min
Dimension 2800*950*1700mm

GK 200 Meters Top Quality China Drilling Machine Geological Drilling Rig Application

(1) The rig has oil-pressure actuating system to improve drilling efficiency and reduces the workers’ physical labor.
(2) Uses ball joint instead of chunk to back the lever conveniently and safely without stopping machines.
(3) It has a manometer to show the pressure in the hole.
(4) Operated conveniently as the handles are centralized.
(5) It has compact structure, as rigs, pumps and diesel engines are on one pedestal so that save the space.
(6) Suitable to work on the plain and mountainous areas for it is moved easily with lightweight and simple to disassemble.

GK 200 Meters Top Quality China Drilling Machine Geological Drilling Rig Features


1) It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.

2) It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.

3) It has hole bottom pressure gauge to be easy to master the situation in the hole.

4) It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.

FAQ Of GK 200 Meters Top Quality China Drilling Machine Geological Drilling Rig

Q: Are you a manufacturer or trading company?

A: We are a specialized manufacturer.

Q: What are your main products, and used for?

A: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.

They are used for mineral exploration, geological drilling.

Q: If the tool joint the buckle, the screw is not how to do?

A: You can tap and screw, this tool joint is not easy to take over tripping in use.

Q: How about the delivery terms?

A: 1.Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.

2. Min. order quantity: 1 piece.

3. Transportation: By sea, train.

Q: How about discount?

A: Price is based on products and order quantity.

Q: Do you accept sample order?

A: Yes sure, please contact us for details.

Q: How about your after-sales service?

A: As a manufacturer has 32 years of history we offer prompt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: Where is your factory located in?

A: Our factory is located in JIN ZHOU city, HEBEI province, China.

Q: How does your company control the quality?

A: Quality first. In order to guarantee high quality for our products, our always make a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001.

200 Meters 1 Year Warranty Geological Drilling Rig For Soil Sample200 Meters 1 Year Warranty Geological Drilling Rig For Soil Sample200 Meters 1 Year Warranty Geological Drilling Rig For Soil Sample


Product Tags:

200 meters geological drilling rig



1 year warranty geological drilling rig



200 meters geological drill rig


Quality 200 Meters 1 Year Warranty Geological Drilling Rig For Soil Sample wholesale

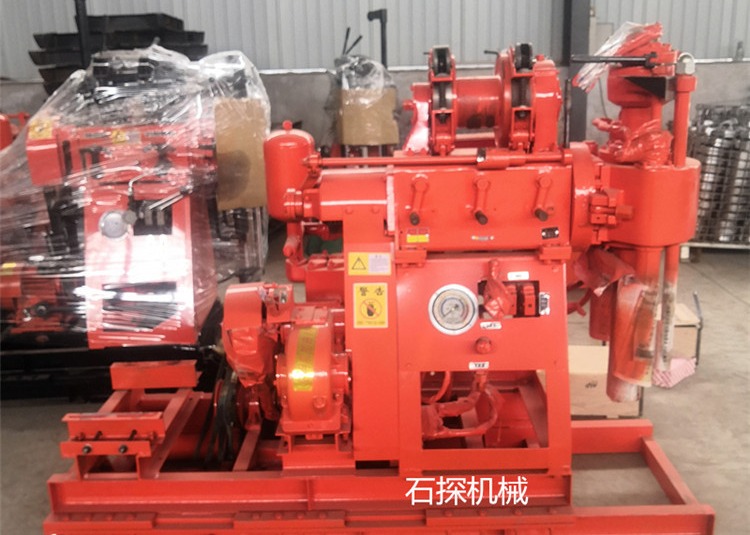

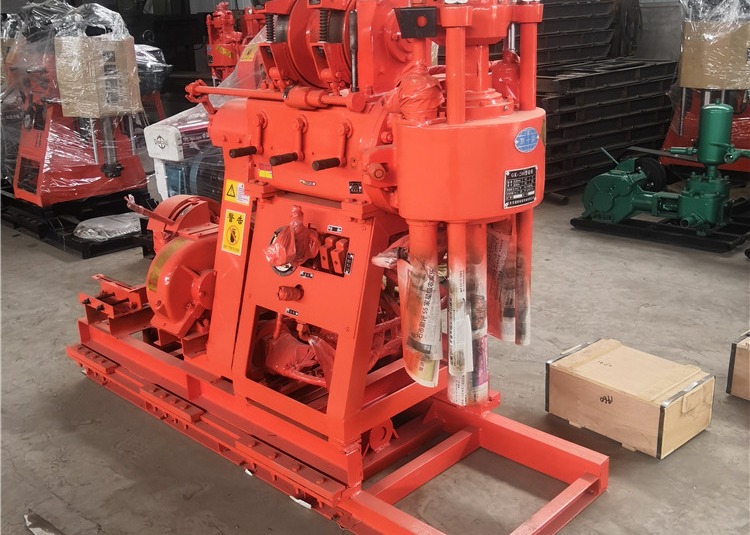

200 Meters 1 Year Warranty Geological Drilling Rig For Soil Sample Images
