ISO Water Well Drilling Rig 180m Pneumatic Borewell Machine

  • 1
  • 2

Brand Name : ST

Model Number : ST-180

Certification : ISO 9001

Place of Origin : Hebei ,China

MOQ : 1set

Price : USD

Payment Terms : T/T, L/C, Western Union,

Supply Ability : 2000sets/month

Delivery Time : 5days

Packaging Details : Wooden Package

Product Name : ST180 Pneumatic Borewell Machine

Weight : 4.5T

Drilling depth : 180m

Dimension(L*W*H) : 3800*1500*2200mm

Drilling hole diameter : 105-180mm

Walking speed : 2.5km/h

Climbing angles (Max.) : 30

Equipped capacitor : 55KW

Drill pipe diameter : 76/89mm

Condition : New

Contact Now

2021 Updated Quality Water Well Drilling Rig ST180 Pneumatic Borewell Machine
ST180 Pneumatic Borewell Machine Introduction
ST180 series Pneumatic Borewell Machine is a lightweight, efficient and multifunctional drilling equipment, The water well drilling rig is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. Pneumatic well drill is especially suitable for water intake in mountainous and rocky strata

ST180 Pneumatic Borewell Machine Main Parameters

Model
ST180
Drilling hole diameter
140-254mm
Drilling depth
180m
One-time advance length
3.3m
Walking speed
2.5km/h
Climbing angles (Max.)
30
Equipped capacitor
55kw
Using air pressure
1.7-2.5mpa
Air consumption
17-31m³/min
Drill pipe length
1.5m, 2.0m, 3.0m
Drill pipe diameter
76mm, 89mm
Rig lifting force
12t
Swing speed
45-65rpm
Swing torque
3200-4600(N.m)
Dimension
3800*1500*2200mm
Weight
4500kg

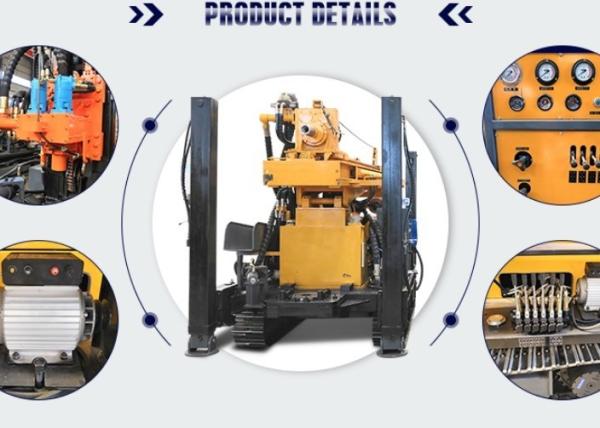

Details of ST180 Pneumatic Borewell Machine

1. The drilling rig hydraulic transmission of the rig effectively utilizes the power. This makes the overall power loss small and the drilling cost low.200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig

2. The drill rig has more positive speed stages and 14-500r / min speed range, and the output torque is 13428-250N.m.
3. The drilling rig has 2 reverse speeds, which is convenient for handling accidents.
4. The air compressor drilling rig adopts a long-stroke double-speed mechanism, a mechanical
power head, and a power head stroke of 3400MM to improve drilling efficiency and reduce the occurrence of plugging and burning accidents.
5. The water well drilling rig rig uses dual oil pumps for oil supply. A single pump is used for drilling, and a double pump is used for confluence when lifting. The power loss is small and the auxiliary time is short.
6. The drilling rig machine has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
Why us?For ST180 Pneumatic Borewell Machine
1. Quality advantage Specializing in the design, development, production and sales of mechanical equipment, 15 years of production experience 2. Complete specifications We have a rich product chain, complete product categories and diverse styles, which can meet the various needs of customers 3. Manufacturer advantages We have our own R&D team and skilled production workers, which can reduce production costs, lower product prices, and improve cost performance. Products can also be customized according to customer special requirements. 4. Intimate service Attentive after-sales service, professional after-sales service team, always respond to customer needs, professional and systematic problem solving.

ISO Water Well Drilling Rig 180m Pneumatic Borewell MachineISO Water Well Drilling Rig 180m Pneumatic Borewell MachineISO Water Well Drilling Rig 180m Pneumatic Borewell Machine
