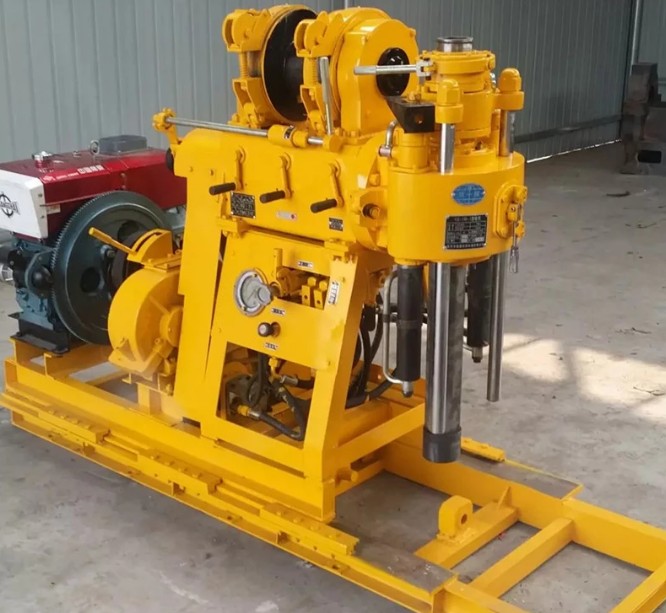

Geological Prospecting 150m XY-1B Water Well Drilling Rig

Name: Geological Prospecting 150m XY1B Water Well Drilling Rig
Brand: JINZHOU SHITAN
Price: 1 USD

Quality Geological Prospecting 150m XY-1B Water Well Drilling Rig wholesale

Brand Name : JINZHOU SHITAN

Model Number : XY-1B

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Type : Geological Drilling Rig

Power Type : Diesel

Usage : Water Well

Voltage : 380V

Power(W) : 15KW

Dimension(L*W*H) : 746*315*229mm

Weight : 985kg

Spindle speed (four gear) (r/min) : 140,295,470,790,1010

Spindle travel(mm) : 450

Contact Now

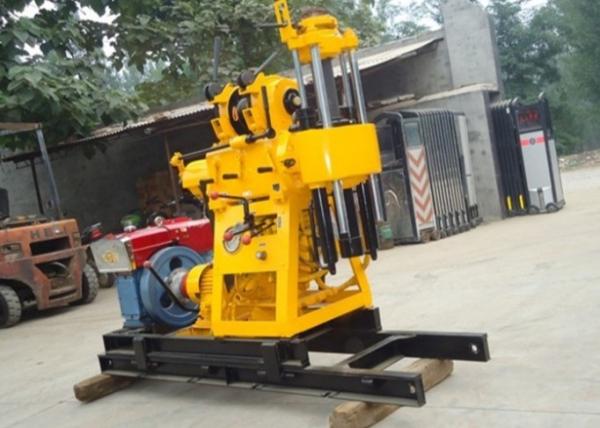

Geological Prospecting Geological Well Drilling Rig 150m XY-1B Type

Geological Drilling Rig Product Application:

XY-1B Drilling rig with hydraulic feeding is widely utilized and featured in high power and hoisting load(2T),Large torque transmission,etc.The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min.It is suited for the geotectonic survey,geological core drilling,small hole drillings for grout,blast and water well in railway,water conservancy,bridge,dam foundation and other construction.Diamond drill vit,alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.

Geological Drilling Rig parameter

Drilling Rig
Drilling diameter(mm)	75,91,110,130,150,300
Drilling depth (m)	150,100,70,50,30
Drill pipe diameter (mm)	42,43
Drilling angle(°)	90~75
Equipment size(L * B * H)	1700 * 780 * 1274 (mm)
Rig weight (except engine)	540
Gyrator
Spindle speed (four gear) (r/min)	140,295,470,790,1010
Spindle travel(mm)	450
Spindle no-load lifting maximum moving speed(m/s)	0.05
Spindle no load drop maximum movement speed(m/s)	0.067
Spindle maximum feed pressure(KN)	15
Spindle maximum lifting force(KN)	25
Spindle maximum output torque(KN• m)	0.5
Winch assembly
Winch maximum lifting force (single rope)(KN)	11
Reel speed (r/min)	36,76,121
Reel circumferential speed(m/s)	0.31,0.66 ,1.05
Reel diameter(mm)	140
Wire rope diameter(mm)	9.3
Wire rope density (m)	35
Brake diameter(mm)	252
Brake band width (mm)	50
Water pump
Pump type	Horizontal single cylinder double acting
Maximum displacement (motor)(L/min)	95(77)
Work pressure (Mpa)	0.7
Cylinder diameter (mm)	80
Piston stroke(mm)	100
The maximum allowable pressure (Mpa)	1.2
Oil pump
Oil pump type	Gear pump
Nominal pressure (Mpa)	12.5
Rated flow(ml/r)	20
Rated speed(r/min)	800-2500
Diesel engine or motor
Diesel engine	ZS1105
Rated power (KW)	10.3
Rated speed (r/min)	2000
Rated pressure(Mpa)	11
Motor type	Y160M - 4

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 10-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?A:Sorry, free sample is not available.

Q: What is your terms of payment ?

A: Usually we accept T/T 30% in advance, then pay the 70% T/T before shipping.

Q:How to order?

A:Please send us your inquiry with detail item description or with Model number.

If there is no packing demand we take it as our regular exported standard packing.

We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.

After you send your detail requirement, we provide quotation to you.

Q:Can I expect a quality products?

A:All the production and processing are strictly according to international standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.

How about Package?

Packing Details : The drilling rig will be packed into wooden box while drill pipes will be packed into bundles or as customer's requirements.

Delivery Details : Usual loading port is Tianjin port in Tianjin ,main port in north of China.
